SEAVO eSSIV
Main Features

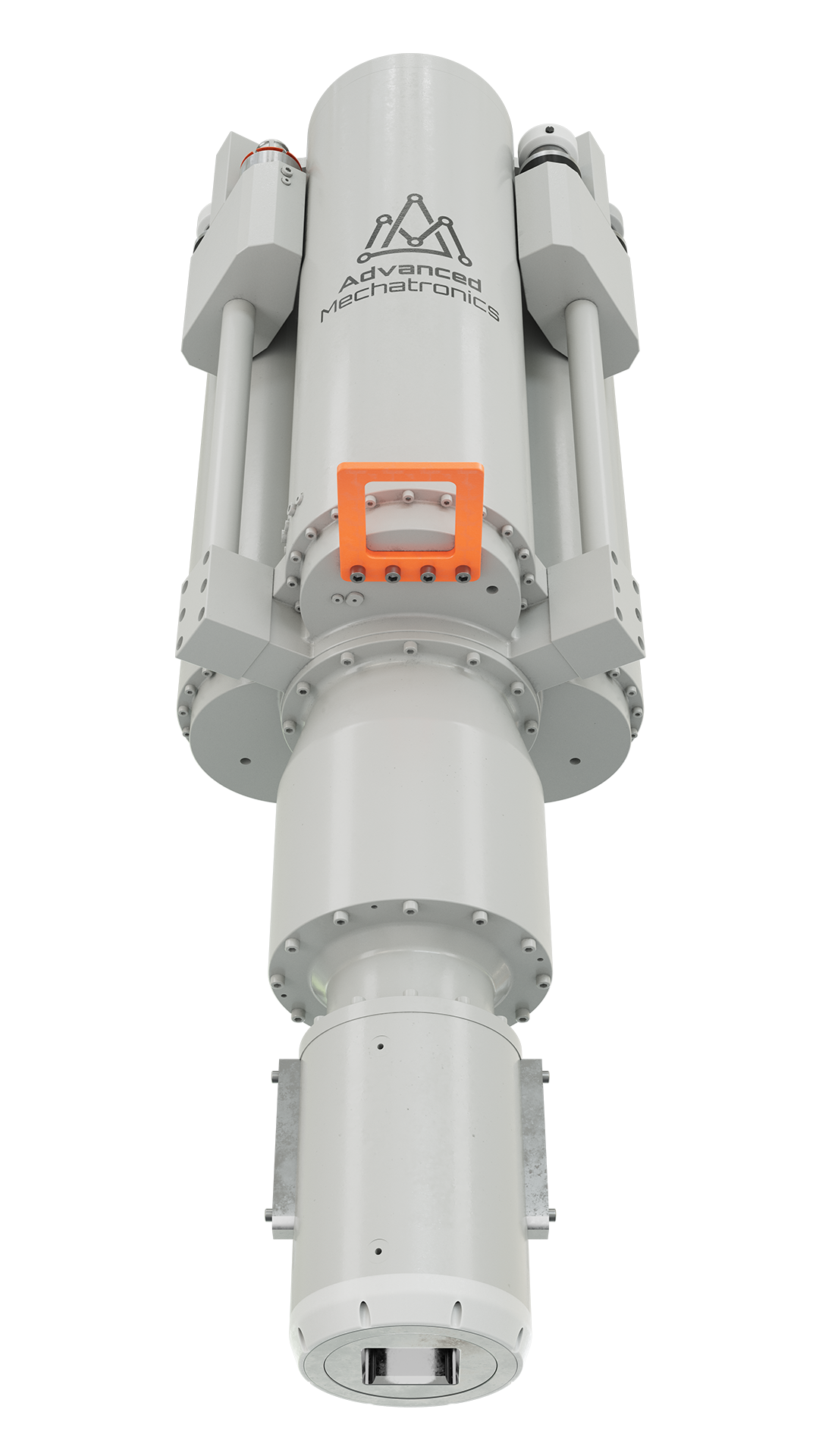

Subsea Actuator for Electric Subsea Safety Isolation Valve
The design of the SEAVO-P allows various configuration to adjust the output torque and speed as well as the communication interface towards the customers needs.
Standardized interface
High Availability SIL 2 Subsea Safety Actuator. ISO 13628-8 ROV class 7 Interface.Up to 28.000 Nm Output Torque. Three Channel Electronics, Battery and Motor Design. 325 VAC single phase or 400 VDC. Fiber Optic SIIS L3 Input Communication. SIIS L2 Interface for Instrumentation or Actuators 25 year design life.
Advanced Functionalities
The SEAVO provides various calibration functions, valve finger printing and dedicated user parameters to allow easy adaption to the application. The locking mechanism allows an easy installation onto the ROV Bucket.
API17F Qualified
The SEAVO-P has experienced an extensive test regime with Q2, Performance, Endurance, Locking, EMI, Hyperbaric and Software.
Technical Specifications
Voltage
Water Depth
Maximum Input power
Maximum Speed
Weight in water
